Hard CBN Cutting Tools For Continuous Finish Machining Gears Inner Bore

Name: Hard CBN Cutting Tools For Continuous Finish Machining Gears Inner Bore
Brand: Halnn
Price: 1 USD

Hard CBN Cutting Tools For Continuous Finish Machining Gears Inner Bore Manufactures

Brand Name : Halnn

Model Number : TNGA/VCGW/CNGA/SNGA

Certification : ISO9001

Place of Origin : China

MOQ : 10 pieces

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal, MoneyGram

Supply Ability : 100000 pcs per month

Delivery Time : 5~15 working days

Packaging Details : 10 pcs in one Plastic box inside, carton box outside

Materials : PCBN

Orgin Country : China

Coating : With/Without Coating

Halnn Grade : BN-H05

Models : TNGA/VCGW/SNGA/CNGA

Suited Condition : Continuous Turning

Contact Now

CNC Cutting Tools CBN Inserts For Continuous Finish Machining Gears Inner Bore

1. BN-H05 CBN Inserts For Continuous Finish Machining Gears Inner Bore

Insert Materials	Coating	Suited Materials	Machining Type	Typical Application	Insert Image
BN-H05	Without Coating	Hardened Steel	Finishing	Gears,Gear Shaft, Bearings
BN-H05 C25	With Coating	Hardened Steel	Finishing	Gears,Gear Shaft, Bearings

2. BN-H05 CBN Inserts Cutting Condition

Coating: It can be made with or without coating, depending the customers' requirements
CBN Content: 45%
Binder: TiN
Granularity: ≤1μm
Hardness: 2700~2800 HV

3. Typical Application ~ BN-H05 CBN Inserts Finish Machining Gears Inner Bore

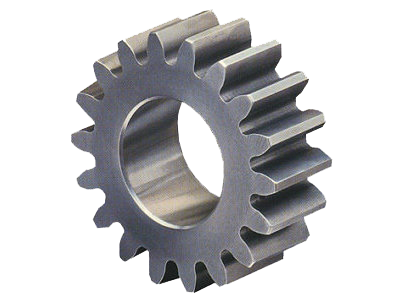

CNGA120408 BN-H05 CBN Inserts Continuous Machining 20CrMnTi Gears
Machining Condition:Continuous turning gears Material: 20CrMnTi Gears, HRC58-62 Selected Insert: BN-H05 CNGA120408 Cutting Condition: ap=0.1mm, Fr=0.1mm/r, Vc=180m/min, Dry Cutting
Insert material	Roughness	Life Time
Halnn BN-H05 CBN Inserts	≤ Ra0.8	800 pcs
Other Europe CBN Inserts	Ra1.0	550 pcs

From above application, we can see that for continuous turning process , with Halnn BN-H05 CBN Inserts, the tool life improved 30%. And the roughness also improved.

4. Common ISO CBN Inserts Models

CNGA	DNGA	VNGA	TNGA
