SNGA CBN Brazing indexable Insert High speed Machining Cast iron Brake Drum from Halnn Tools
1. Halnn Tools CBN indexable Insert High speed MachiningCast iron Brake Disc
Brake disc, as the most important parts in brake system, were required high on the
surface quality and the Morphological tolerance. And with the development of the society, if the manufacturers want to have benefit, they can only find some methods to improve the efficiency. The first to think for them is change cutting tools.
2. Why we Choose Halnn Tools CBN indexable Insert High speed Machining ?
Halnn researched 4 type CBN inserts grades specific for machining brake disc which can meet their requirements on the process and the surface roughness. The following will share you 4 kinds of CBN inserts.
(1) For roughing process: BN-S300 will be your right choice, the advantages: large cutting depth,
good wear resistance and long tool life.
(2) For finishing process:BNK30, BN-K20and BN-K10 can be the right choice, BNK30 can be made of both brazing and solid type, it has sharp cutting edges, high precision and long tool life. BN-K20 belong to brazing CBN insert, it has multi-cutting edges, will be more economic.BN-K10 belong to PCBN insert.
3. CBN indexable Insert Characteristics
| Insert Grade | Binder | CBN Content(%) | Granularity | Hardness(HV) | Cutting Depth | Condition |
| BN-S300 | AL,TIC | 97 | 4—6 | 3400—3600 | ≤2mm | Continuous |
| BN-K10 | Si,Co | 95 | ≤ 2 | 3300—3500 | ≤1.5mm | Continuous |
| BN-K20 | AL | 95 | 2—4 | 3400—3600 | ≤0.5mm | Continuous |
| BNK30 | Si,TIC | 97 | 2—4 | 3400—3600 | ≤0.5mm | Continuous |

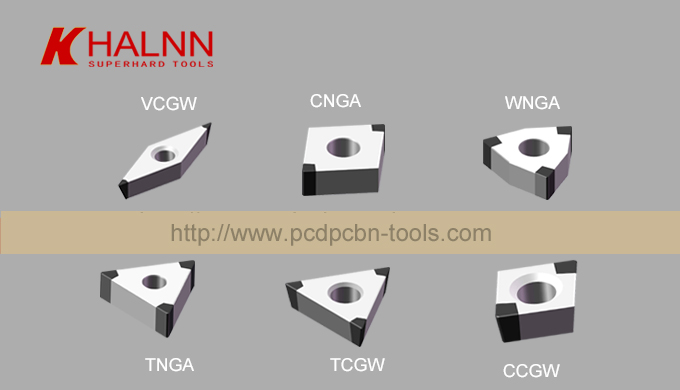

4.Pictures of Halnn Tools CBN Turning Insert

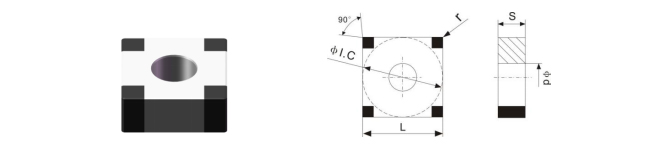

5.Detailed Data of DNGA CBN Turning Insert
 |
| Type | Dimension | Standard Chamfer | Grades |
| L(mm) | φI.C(mm) | S(mm) | φd(mm) | r(mm) | BN-H11 | BN-H20 | BN-K20 | BNK30 |
| SNGA120404-8S | 12.7 | 12.7 | 4.76 | 5.16 | 0.4 | S01015 S01020 S01025 S02020 | ● | ● | ● | ● |
| SNGA120408-8S | 12.7 | 12.7 | 4.76 | 5.16 | 0.8 | ● | ● | ● | ● |
| SNGA120412-8S | 12.7 | 12.7 | 4.76 | 5.16 | 1.2 | ● | ● | ● | ● |
6.Application Case
| Item | Brake Disc Manufacturer | Advantages compraison |
| Machining Materials | Powder Metallurgy | Compared with other other PCBN inserts, The performance will be better than other insert .
Lifetime will be longer than other pcbn inserts ,but the processing cost will be less than other pcbn inserts. |
| Machining Condition | Dry cutting |
| Selected Insert | BN-K20 DCGW110304-2S |
| Cutting Parameters | ap=0.05mm,Fr=0.03mm/r, N=1600r/min |
7.Our service
| Pre-Sales Service l) Prompt reply and 24 hours online,professional team to provide best price and quality product. l) Same testing support l ) Every batch of products will be tested to ensure its quality. After-sales Service l) The real-time logistics information monitoring l ) Any questions about the product can be consulted at any time. l) Product with any problem can return. |
