Brand Name : Halnn
Model Number : RNMN/RCMN/RCMO/RCMS
Certification : ISO9001
Place of Origin : China
MOQ : 10 pcs
Price : Negotiable ( About 10-30 Usd/ Piece)
Payment Terms : T/T, Western Union, MoneyGram,Paypal
Supply Ability : 100000 pcs per month
Delivery Time : 3~15 working days
Packaging Details : 10 pcs in one plastic box inside, carbon box outside
Mnchining Process : Rough Machining
Dimension : Customer-made
Body : Tungsten Carbide
Origin Country : Henan,China
Mnchining Material : Gray Cast iron
Brade : Halnn Tools
Insert Garde : RNMN
Application : Brake Disc
RNMN060400 Solid CBN inserts High efficiency Rough Machining Gray Cast iron Brake Disc
1. Halnn Tools RNMN Solid Round CBN inserts Rough Machining Gray Cast iron Brake Disc
In previous times, people adopt common lathe and carbide insert to machine brake
disc, the process is roughing-semi-finishing-finishing. With the improved requirement on the surface quality and the production qty, they change the common lathe to CNC Lathe, but the carbide insert can’t machine with high cutting speed, they also can’t improve the efficiency, so they will choose other insert materials to satisfy the CNC lathe. CBN Insert became their right choice.
2. Why we Choose Halnn Tools RNMN Solid Round CBN inserts Rough Machining Gray Cast iron Brake Disc
In previous times, the main cutting tools for machining brake disc in China are carbide insert and coating carbide insert, and most of them use common lathe, it affects the processing efficiency seriously. In current times, with the development of the society, they change the common lathe to CNC Lathe, and it can be used with high cutting speed, so it must change the cutting tools materials to meet the lathe’s requirements. CBN Insert will be their right choice.
Halnn Tools, as the predecessor of superhard cutting tools industry, already researched superhard cutting tools more than 10 years, and launched 4 grades CBN inserts for specific for machining brake disc: BN-S300, BN-K20 BNK30 and BN-K10 CBN insert. They have obvious advantages for machining brake disc than traditional carbide insert.
3.Solid Round CBN inserts Characteristics
Insert Grade | Suited Materials | Machining Type | Typical Application |
BN-S300 | Gray Cast Iron | Roughing, Finishing | Brake Disc, Gearbox, Cylinder Liner Brake Drum, Cast Iron Engine, |
BN-K20 | Gray Cast Iron | Roughing, Finishing | Brake Disc, Brake Drum, Cast Iron Engine,Gearbox |
BNK30 | Cast Gray Iron, Iron based alloy | Roughing, Finishing | |
BN-K10 | Cast Gray Iron, Powder Metallurgy | Finishing | Brake Disc,Powder Metallurgy Parts, Valve seat ring, Engine Cylinder bore |
4.Pictures of Halnn Tools Solid Round CBN inserts

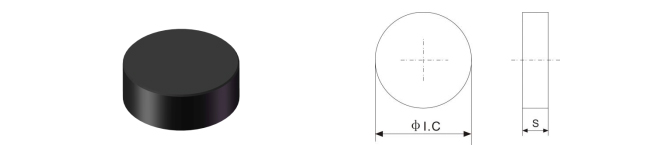

5.Detailed Data of RNMN Solid Round CBN inserts
![]() | |||||||||||
Type | Dimension | Standard Chamfer | Grades | ||||||||
L(mm) | φI.C(mm) | S(mm) | r(mm) | BN-K1 | BN-S10 | BN-S20 | BN-S200 | BN-S300 | |||
RNMN060400 | 6.35 | 4.76 | S01020 S01025 S02020 S02030 S05020 S10020 | ◎ | ◎ | ◎ | ◎ | ◎ | |||
RNMN090300 | 9.525 | 3.18 | ◎ | ◎ | ● | ● | ● | ||||
RNMN090400 | 9.525 | 4.76 | ● | ● | ● | ● | ● | ||||
RNMN090700 | 9.525 | 7.94 | ● | ● | ● | ● | ● | ||||
RNMN120400 | 12.7 | 4.76 | ● | ● | ● | ● | ● | ||||
RNMN120600 | 12.7 | 6.35 | ● | ● | ● | ● | ● | ||||
RNMN120700 | 12.7 | 7.94 | ● | ● | ● | ● | ● | ||||
RNMN150700 | 15.875 | 7.94 | ● | ● | ● | ||||||
RNMN200800 | 20 | 8 | ● | ● | ● | ||||||
RNMN201000 | 20 | 10 | ● | ● | ● | ||||||
RNMN251000 | 25.4 | 10 | ● | ● | ● | ||||||
RNMN251200 | 25.4 | 12 | ● | ● | ● |
6.Application Case
Halnn Tools RNMN Solid Round CBN inserts Rough Machining Gray Cast iron Brake Disc
Machining Part: Brake Disc
Component Materials:FC250 (HT250)
Hardness:HB210
Selected insert:BN-S300 RNMN060400
Cutting Data: Vc=900,Fr=0.25,ap=0.3
Cutting Type: Dry Cutting
Machining Effect: The Tool Life of Coating CBN Inserts improved about 30%, And the roughness Kept Ra1.6
|
7.Our service
Pre-Sales Service | After-sales Service |
l) Prompt reply and 24 hours online, professional team to provide best price and quality product.
l) Same testing support
l ) Every batch of products will be tested to ensure its quality.
| l) The real-time logistics information monitoring
l ) Any questions about the product can be consulted at any time.
l) Product with any problem can return |
![]() |
