Heavy Interrupted Cutting Indexable Inserts 20CrMnTi Materils Hardened Steel Gear

Name: Heavy Interrupted Cutting Indexable Inserts 20CrMnTi Materils Hardened Steel Gear
Brand: Halnn
Price: 1 USD

Heavy Interrupted Cutting Indexable Inserts 20CrMnTi Materils Hardened Steel Gear Manufactures

Brand Name : Halnn

Model Number : CCGW060202-2S

Certification : ISO9001

Place of Origin : China

MOQ : 10 pcs

Price : Negotiable ( About 10-30 Usd/ Piece)

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 100000 pcs per month

Delivery Time : 3~15 working days

Packaging Details : 10 pcs in one plastic box inside, carbon box outside

Mnchining Process : Finishing Heavy Interrupted Cutting

Dimension : Customter-made

Application : Gears

Origin Country : Henan,China

Mnchining Material : Hardened Steel Gear wheel

Brade : Halnn Tools

Insert Garde : BN - H10 CCGW060202-2S

Body : Tungsten Carbide

Contact Now

Heavy Interrupted Cutting Indexable Inserts 20CrMnTi Materils Hardened Steel Gear

1. Halnn Tools Finishing Heavy Cutting 20CrMnTi materils Hardened Steel Gear WIth BN - H21 PCBN Indexable Insert

Halnn Tools, as one of the most famous cutting tools company which offer cbn insert solutions for the customers, constantly striving to develop and provice high-quality, high-perfromance tooling producsts that can quickly meet the increasingly diverse demands. With long-term cultivation of accumulated technical strength and the most advanced technology development capability, Halnn first put forward the concept of “Solid cbn insert” in China, and adapt the cutting requirements of “high speed, high precision” in mordern times, Let the world no longer have difficult to machine materials.

2. PCBN Indexable Insert Characteristics

Insert Grade	Granularity(μm)	Hardness	Blinder	Recommend Cutting condition
BN-S20	4~6	2900-3100	TIN	Interrupt-Continuous
BN-H20	2~4	3100-3300	TIC	Semi-Interrupt
BN-S200	2~4	2800-3000	TIN	Continuous
BN-H11	2~4	2800-3000	TIN	Continuous
BN-H05	≤1	2700-2800	TIN	Continuous
BN-H10	≤1	2700-2800	TIN	Continuous-Semi-interrupt
BN-H21	1~2	2600-2800	AL,TINC	Semi-interrupt—Heavy Interrupt
BN-H05 C25	≤1	2700-2800	TIN	Continuous
BN-H10 C25	≤1	2700-2800	TIN	Continuous~Semi-Interrupt
BN-H21 C25	1~2	2600-2800	AL,TINC	Semi-Interrupt~Heavy Interrupt

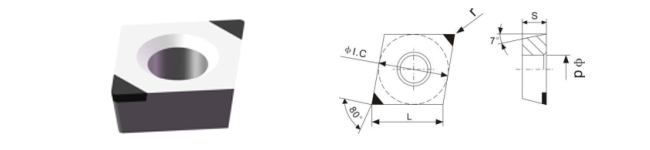

3.Detailed Data of PCBN Indexable Insert


Type	Dimension					Grades
Type	L(mm)	φI.C(mm)	S(mm)	φd(mm)	r(mm)	BN-H10	BN-H21	BN-K10
CCGW060202-2S	6.4	6.35	2.38	2.8	0.2	●	●	●
CCGW060204-2S	6.4	6.35	2.38	2.8	0.4	●	●	●
CCGW060208-2S	6.4	6.35	2.38	2.8	0.8	●	●	●
CCGW09T302-2S	9.7	9.525	3.97	4.4	0.2	●	●	●
CCGW09T304-2S	9.7	9.525	3.97	4.4	0.4	●	●	●
CCGW09T308-2S	9.7	9.525	3.97	4.4	0.8	●	●	●
CCGW120404-2S	12.9	12.7	4.76	5.5	0.4	◎	◎	◎
CCGW120408-2S	12.9	12.7	4.76	5.5	0.8	◎	◎	◎
CCGW120412-2S	12.9	12.7	4.76	5.5	1.2	◎	◎	◎

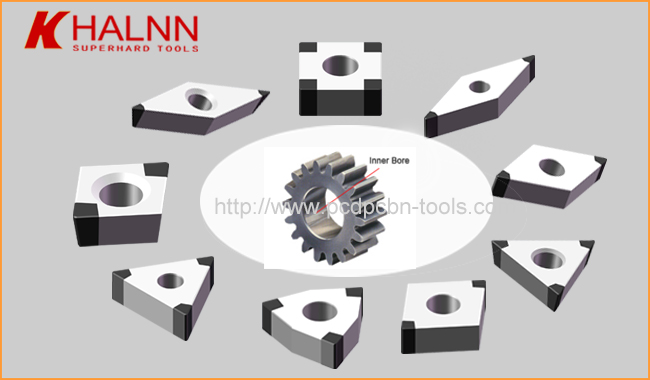

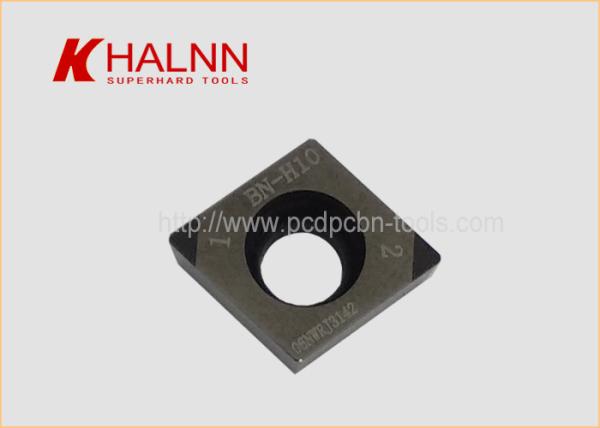

4.Pictures of Halnn Tools PCBN Indexable Insert

Heavy Interrupted Cutting Indexable Inserts 20CrMnTi Materils Hardened Steel Gear

5.Application Case

Finishing Heavy Interrupted Cutting 20CrMnTi materils Hardened Steel Gear WIth PCBN Indexable Insert
	Machining Condition:	Finishing Heavy Interrupted Cutting
	Materials	20CrMnTi Gears, HRC58~62
	Selected Insert:	BN-H10 CCGW060202-2S
	Cutting Condition	ap=0.25mm,Fr=0.08mm/r,Vc=135m/min,dry cutting
Cutting Tools Materials	Cutting Speed	Tool Life	Efficiency
Halnn BN-H10	135m/min	1000 pieces	Improved 22%
Other PCBN Insert	110m/min	600 pieces	----

6.FAQ

1. Are you a trading company or manufacturer ?

A: We are a manufacturer and wholesaler for diamond & CBN (cubic boron nitride) abrasives and tools.

2. How long is your delivery time?

A: Generally it is 3 -7 days.

2. Do you provide samples ? Is it free or extra ?

A: Normally we do not offer free samples, we could offer the sample for testing, but shipping fee is to be paid by customer as a company policy!
