CBN Hard Turning Halnn WNGA PCBN Inserts 20CrMnTi Hardened Steel Materials Gear

Name: CBN Hard Turning Halnn WNGA PCBN Inserts 20CrMnTi Hardened Steel Materials Gear
Brand: Halnn
Price: 1 USD

CBN Hard Turning Halnn WNGA PCBN Inserts 20CrMnTi Hardened Steel Materials Gear Manufactures

Brand Name : Halnn

Model Number : WNGA080404-6S

Certification : ISO9001

Place of Origin : China

MOQ : 10 pcs

Price : Negotiable ( About 10-30 Usd/ Piece)

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 100000 pcs per month

Delivery Time : 3~15 working days

Packaging Details : 10 pcs in one plastic box inside, carbon box outside

Mnchining Process : Finish Hard Turning

Dimension : Customter-made

Application : Gears

Origin Country : Henan,China

Mnchining Material : Hardened Steel Gear wheel

Brade : Halnn Tools

Insert Garde : WNGA080404-6S

Body : Tungsten Carbide

Contact Now

CBN Hard Turning 20CrMnTi Hardened Steel materials Gear with Halnn WNGA PCBN inserts

1. Halnn Tools CBN Hard Turning 20CrMnTi Hardened Steel materials Gear with Halnn WNGA PCBN inserts

Halnn Toosl is one of the manufacturers of super-hard tools. Since its inception, Halnn Toosl has developed cubic boron nitride inserts for high-hardness and difficult-to-machine materials. Gears are one of the common parts. There are special tool grades for hard gears.

In the case where the cubic boron nitride insert is not recognized, many of the grinding processes have existed until today. However, with the improvement of the performance of CNC machine tools and the increasing focus on efficiency of gear manufacturers, some companies have improved the processing technology and adopted the car grinding process to achieve hard turning and improve production efficiency.

2. PCBN inserts Characteristics

Insert Grade	Typical Application	Suited Materials
BN-H11	Bearings, Gears, Gear Shaft, Hardened Mold	Hardened Steel
BN-H05	Gears,Gear Shaft, Bearings	Hardened Steel
BN-H10	Bearings, Gears, Gear Shaft, High hardness component	Hardened Steel, high strength cast iron
BN-H21	Bearings, Gears, Gear Shaft,Mold,ect.	Hardened Steel
BN-H05 C25	Gears,Gear Shaft, Bearings	Hardened Steel
BN-H10 C25	Bearings, Gears, Gear Shaft, High hardness component	Hardened Steel, high strength cast iron
BN-H21 C25	Bearings, Gears, Gear Shaft,Mold,ect.	Hardened Steel

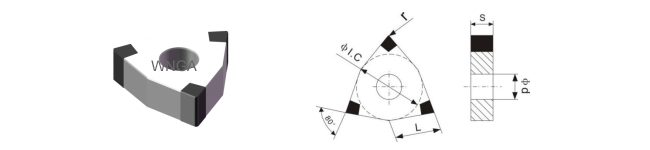

3.Detailed Data of PCBN inserts


Type	Dimension					Grades
Type	L(mm)	φI.C(mm)	S(mm)	φd(mm)	r(mm)	BN-H11	BN-H20	BN-K20	BNK30
WNGA080404-6S	8.7	12.7	4.76	5.16	0.4	●	●	●	●
WNGA080408-6S	8.7	12.7	4.76	5.16	0.8	●	●	●	●
WNGA080412-6S	8.7	12.7	4.76	5.16	1.2	●	●	●	●

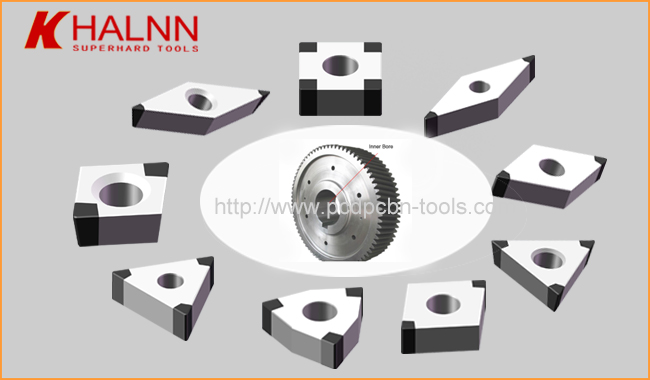

4.Pictures of Halnn Tools PCBN inserts

CBN Hard Turning Halnn WNGA PCBN Inserts 20CrMnTi Hardened Steel Materials Gear

5.Application Case

Semi-interrupted Turning
Machining Workpiece:	Gears
Machining Type:	Semi-interrupted Turning
Machining Part:	Inner Bore
Workpiece Hardness:	HRC58~62
Insert Model:	BN-H11 WNGA120408
Processing Type:	Dry Cutting
Cutting Parameters:	Vc=120m/min,Fr=0.1mm/r,ap=0.25mm
Machining Effect
Insert Materials	Cutting Speed	Insert Lifetime	Tool Cost/workpiece
Halnn BN-H21	120 m/min	700 pieces/blade	USD 0.015
Other PCBN insert	120 m/min	650 pieces/blade	USD 0.03
