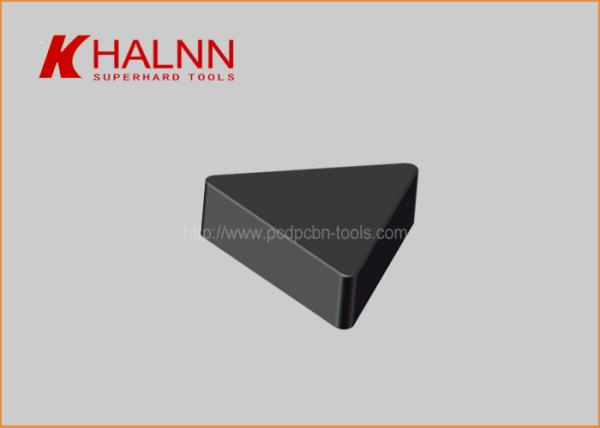

Hard Machining Wind Power Bearings with TNMN CBN Cutting Tool have large allowance
1. Halnn Tools Hard Machining Wind Power Bearings with SNMN CBN Cutting Tool have large allowance
After the heat treatment of large bearings, the remaining amount is large, and the solid polycrystalline CBN tool can improve the production efficiency. The BN-S20 grade is a CBN material that is widely used at present. BN-S20 grade belongs to the solid polycrystalline CBN cutter, the hardness reaches between HRC95-HRC100, and contains ceramic bond to ensure higher chemical resistance at high temperature and better wear resistance.
For example, the inner and outer rings of wind power bearings are processed: the production efficiency is 4 times that of the grinding process, but the material consumables are only 1/5 of the grinding; Halnn Tools tools are durable and more affordable.

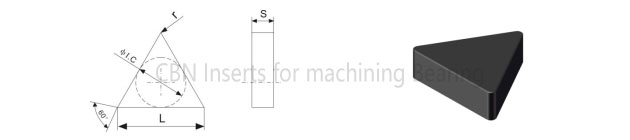

2.Detailed Data of CBN Cutting Tool
 |
| Type | Dimension | Standard Chamfer | Grades |
| L(mm) | φI.C(mm) | S(mm) | r(mm) | BN-S20 | BN-S200 | BN-S300 |
| TNMN110304 | 11 | 6.35 | 3.18 | 0.4 | S01020 S02020 | ◎ | ◎ | ◎ |
| TNMN110308 | 11 | 6.35 | 3.18 | 0.8 | ◎ | ◎ | ◎ |
| TNMN110312 | 11 | 6.35 | 3.18 | 1.2 | ◎ | ◎ | ◎ |
| TNMN160404 | 16.5 | 9.525 | 4.76 | 0.4 | ◎ | ◎ | ◎ |
| TNMN160408 | 16.5 | 9.525 | 4.76 | 0.8 | ◎ | ◎ | ◎ |
| TNMN160412 | 16.5 | 9.525 | 4.76 | 1.2 | ◎ | ◎ | ◎ |

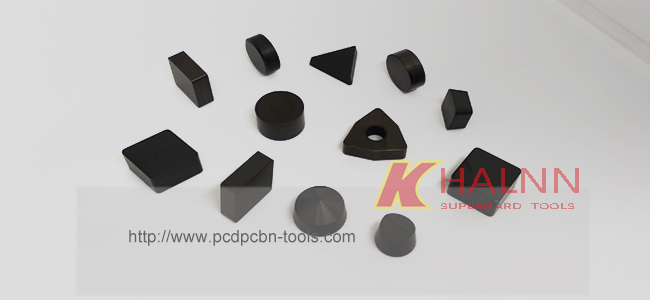

3.Pictures of Halnn Tools CBN Cutting Tool
4.Application Case of CBN Cutting Tool Machining Bearing
Hard Machining Wind Power Bearings with TNMN CBN Cutting Tool have large allowance
| Machining Site: Wind Power Bearings Materials: 42CrMo4 Hardness: HRC53 Insert Model: BN-S200 TNMN110304 Cutting Data: Vc = 110m/min, Fr=0.45mm/r, ap=0.5mm Processing Type: Dry Cutting |
| Compared with the ceramic cutters |
| Insert Materials | Cutting Speed (m/min) | Tool Life | Roughness |
| Halnn BN-S200 | 110 | 8 | Ra0.8 |
| Ceramic Cutters | 90 | 1 | Ra1.6 |
5.FAQ
Q1. How is your quality?
A1. We have a very seriously control system. We guarantee the high performance of our products.
Q2.What is the Warranty for your products?
A2. For one year from the date of purchase, If any problem on our side, we will make prompt response, and take the shipping cost and send replacement.
