CBN Inserts Machining Mud pump with better impact resistance than ceramic insert
1. Halnn Tools CBN Inserts Machining Mud pump with better impact resistance than ceramic insert
Normally the manufacturer will choose High chromium cast iron as the main materials of the industry pumps, but because of its high hardness of high chromium and the casting defects, the industry pump is difficult to machine. Common carbide insert and cbn insert both don't have good wear resistance. Choose the right cutting tools will be very important to improve the efficiency and lower the costs.
Nowadays, most industry pumps use high chromium cast iron as the main materials, which make the pumps more wear resistant than before. However the hardness of high chromium cast iron will be high and it also has some casting defects, In order to solve the problems, choosing the right cutting tools will be very important.

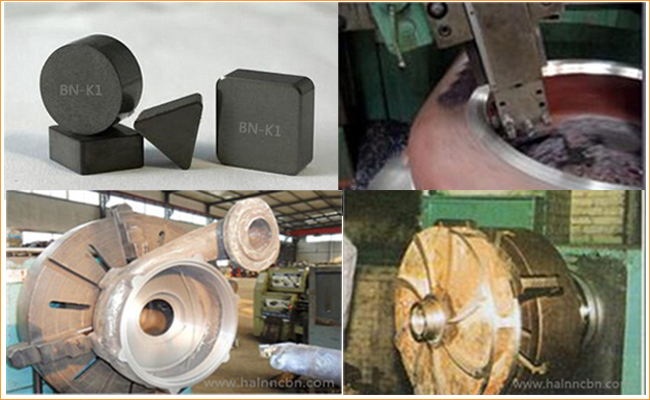

2.Pictures of Halnn Tools CBN Inserts
3. CBN Inserts Characteristics
| Recommend CBN Grade | Machining Materials | Process | Cutting Parameters |
| Cutting Speed Vc (m/min) | Cutting Depth ap | Feed Rate Fr(mm/r) |
| (mm) |
| BN-K1 | (Hardness:HRC35-68) | Roughing | 35-120 | 1-10 | 0.15-1.0 |
| BN-K10,BN-H10 | High Hardness Cast Iron | Finishing | 60-200 | ≤1 | 0.05-0.35 |
4.Detailed Data of CBN Inserts
 |
| Type | Dimension | Standard Chamfer | Grades | Corresponding tool holder |
| L(mm) | φI.C(mm) | S(mm) | r(mm) | BN-K1 | BN-S20 | BN-S200 |
| CNMN120404 | 12.9 | 12.7 | 4.76 | 0.4 | S01020 S01025 S02020 S02030 S02530 S03020 | ● | ● | ● | CCLNR/L |
| CNMN120408 | 12.9 | 12.7 | 4.76 | 0.8 | ● | ● | ● |
| CNMN120412 | 12.9 | 12.7 | 4.76 | 1.2 | ● | ● | ● |
| CNMN120416 | 12.9 | 12.7 | 4.76 | 1.6 | ● | ● | ● |
| CNMN120704 | 12.9 | 12.7 | 7.94 | 0.4 | ● | ● | ● |
| CNMN120708 | 12.9 | 12.7 | 7.94 | 0.8 | ● | ● | ● |
| CNMN120712 | 12.9 | 12.7 | 7.94 | 1.2 | ● | ● | ● |
| CNMN120716 | 12.9 | 12.7 | 7.94 | 1.6 | ● | ● | ● |
5.Application Case of CBN Inserts Machining Mud pump with better impact resistance than ceramic insert
| Machining Part: High Chromium Cast iron Mud Pump |
| Workpiece Hardness:HRC 60 |
| Cutting Type:Dry Cutting |
| Machining Materials:High Cr White Cast iron(Cr26) |
| Inserts Grade:BN-K1 CNMN120404 |
| Cutting Parameters:ap=3.5mm,f=0.1mm/r,Vc=75m/min |
| Testing Performance |
| Inserts Materials | Linear Speed(m/min) | Feed Rate(mm/r) | Lifetime/edge |
| Halnn BN-K1 | 75 | 0.1 | 85 |
| Ceramic Inserts | 35 | 0.07 | 10 |
6.FAQ
Q1. How is your quality?
A1. We have a very seriously control system. We guarantee the high performance of our products.
Q2.What is the Warranty for your products?
A2. For one year from the date of purchase, If any problem on our side, we will make prompt response, and take the shipping cost and send replacement.
