High Chromium Cast Iron Cbn Milling Cutting Tools , Round Cbn Inserts Rough Turning

Name: High Chromium Cast Iron Cbn Milling Cutting Tools Round Cbn Inserts Rough Turning
Brand: Halnn
Price: 1 USD

High Chromium Cast Iron Cbn Milling Cutting Tools , Round Cbn Inserts Rough Turning Manufactures

Brand Name : Halnn

Model Number : RNMN1507

Certification : ISO9001

Place of Origin : China

MOQ : 10 pcs

Price : Negotiable ( About 10-30 Usd/ Piece)

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 100000 pcs per month

Delivery Time : 3~15 working days

Packaging Details : 10 pcs in one plastic box inside, carbon box outside

Machining Process : Heavy turning

Dimension : Customter-made

Application : Pump Case, Pump body

Origin Country : Henan,China

Mnchining Material : High Chromium Cast iron

Brade : Turning Tools

Insert Type : RNMN1507

Body : Cubic boron nitride

Coating : Uncoated

Grade : ISO Grades

Contact Now

Rough Turning High Chromium Cast iron Slurry pump CBN Inserts with better wear resistance

1. Halnn Tools Rough Turning High Chromium Cast iron Slurry pump CBN Inserts with better wear resistance

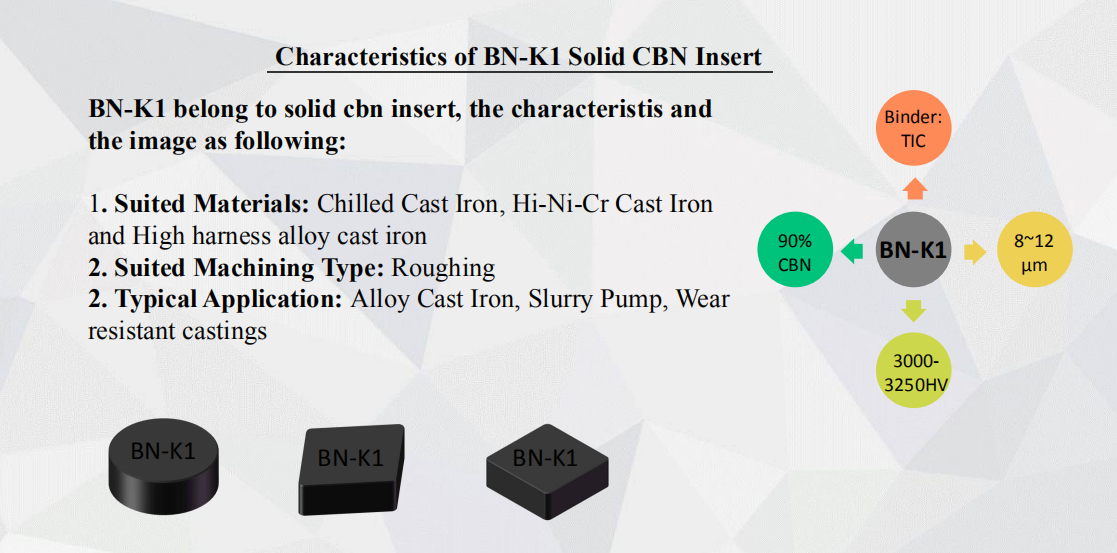

The most suitable cutting tools for machining pump are CBN inserts. And BN-K1 solid CBN insert is researched specific for machining high hardness cast iron parts. It has excellent wear resistance and impact resistance, the content of cubic boron nitride can reach 90%, the hardness is around HRC95~100. When machining pump with BN-K1 solid CBN inserts, it will improve the efficiency and lower the production costs.

2. CBN insert Conditions

High Chromium Cast Iron Cbn Milling Cutting Tools , Round Cbn Inserts Rough Turning

3.Detailed Data of CBN insert


Type	Dimension				Standard Chamfer	Grades
Type	L(mm)	φI.C(mm)	S(mm)	r(mm)	Standard Chamfer	BN-K1	BN-S20
RNMN150700		15.875	7.94		S01020 S01025 S02020 S02030 S05020 S10020	●	●

4. Case of Rough Turning High Chromium Cast iron Slurry pump CBN Inserts with better wear resistance

High Chromium Cast Iron Cbn Milling Cutting Tools , Round Cbn Inserts Rough Turning

5.Our Company

Halnn Main Products include 4 series: Solid CBN Inserts, PCBN inserts, Brazed PCBN Inserts and PCD Cutters. These Products mainly used Materials include Gray Cast Iron, Powder Metallurgy Materials, Harded Steel, High Speed Steel, Superalloy Alloy and other difficult to process materials. The main application industries include Mill Rolls, Mining Machinery, Automotive Parts, Aerospace Parts and Industry Pump, ect.

High Chromium Cast Iron Cbn Milling Cutting Tools , Round Cbn Inserts Rough Turning

6.Service

Pre-Sales Service

l) Prompt reply and 24 hours online,professional team to provide best price and quality product.

l) Same testing support

l ) Every batch of products will be tested to ensure its quality.

After-sales Service

l) The real-time logistics information monitoring

l ) Any questions about the product can be consulted at any time.

l) Product with any problem can return.
