Hard Part Turning Milling Cbn Cutters High Chromium Cast Iron Slurry Pump Halnn Solid CBN Tools

Name: Hard Part Turning Milling Cbn Cutters High Chromium Cast Iron Slurry Pump Halnn Solid CBN Tools
Brand: Halnn
Price: 1 USD

Hard Part Turning Milling Cbn Cutters High Chromium Cast Iron Slurry Pump Halnn Solid CBN Tools Manufactures

Brand Name : Halnn

Model Number : CNMN120412

Certification : ISO9001

Place of Origin : China

MOQ : 10 pcs

Price : Negotiable ( About 10-30 Usd/ Piece)

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 100000 pcs per month

Delivery Time : 3~15 working days

Packaging Details : 10 pcs in one plastic box inside, carbon box outside

Machining Process : Heavy turning

Dimension : Customter-made

Application : Pump

Origin Country : Henan,China

Mnchining Material : High Chromium Cast iron

Brade : Turning Tools

Insert Garde : CNMN120416

Body : Cubic boron nitride

Coating : Uncoated

Grade : ISO Grades

Contact Now

Hard Part Turning High Chromium Cast iron Slurry pump CBN Cutter with Halnn Solid CBN Tools

1. Halnn Tools Hard Part Turning High Chromium Cast iron Slurry pump CBN Cutter with Halnn Solid CBN Tools

Halnn BN-K1 solid CBN Insert has higher hardness and wear resistance than carbide insert and ceramic insert. It also has good toughness and impact resistance. BN-K1 also can be used for interrupt turning condition and large working allowance and have stable cutting performance and long tool life.

2. CBN Cutting Tools Characteristics

Recommend CBN Grade	Machining Materials	Process	Cutting Parameters
			Cutting Speed Vc (m/min)	Cutting Depth ap	Feed Rate Fr(mm/r)
				(mm)
BN-K1	(Hardness:HRC35-68)	Roughing	35-120	1-10	0.15-1.0
BN-K10,BN-H10	High Hardness Cast Iron	Finishing	60-200	≤1	0.05-0.35

3.Detailed Data of CBN Cutting Tools


Type	Dimension				Standard Chamfer	Grades		Corresponding tool holder
Type	L(mm)	φI.C(mm)	S(mm)	r(mm)	Standard Chamfer	BN-K1	BN-S20	Corresponding tool holder
CNMN120412	12.9	12.7	4.76	1.2	S01020 S01025 S02020 S02030 S02530 S03020	●	●	CCLNR/L
CNMN120704	12.9	12.7	7.94	0.4		●	●
CNMN120708	12.9	12.7	7.94	0.8		●	●
CNMN120712	12.9	12.7	7.94	1.2		●	●
CNMN120716	12.9	12.7	7.94	1.6		●	●

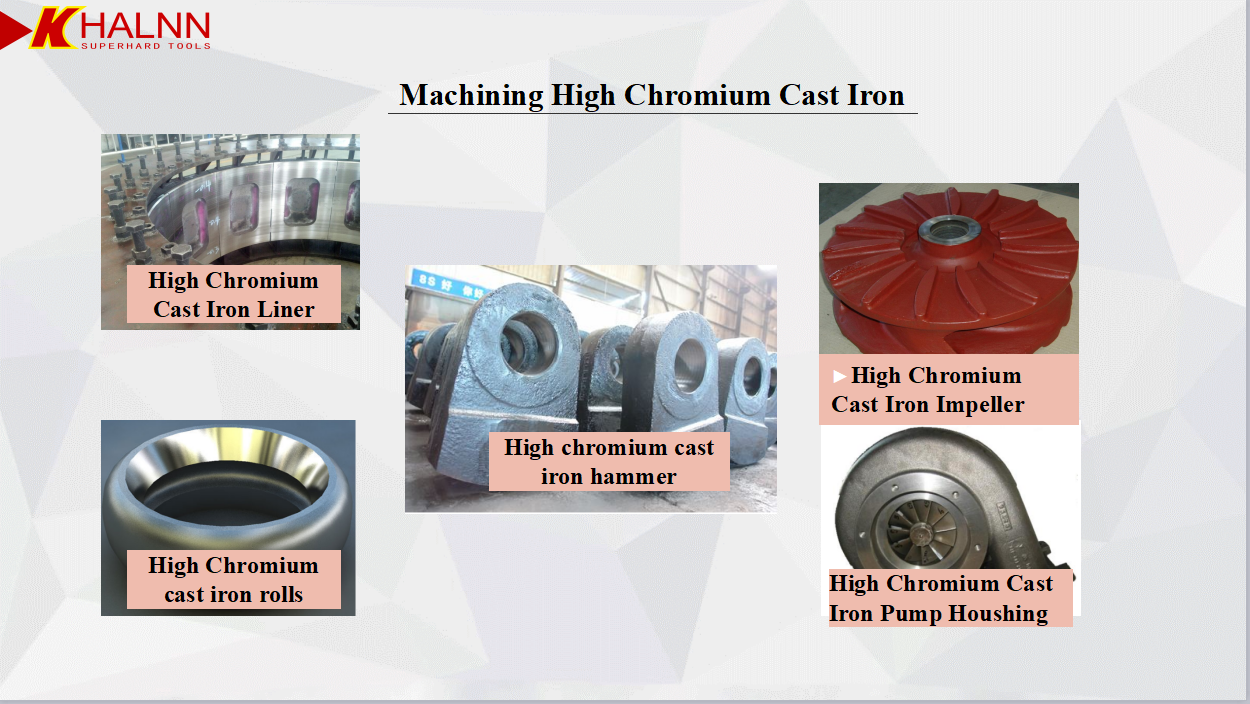

4. Application of Hard Part Turning High Chromium Cast iron Slurry pump CBN Cutter with Halnn Solid CBN Tools

Hard Part Turning Milling Cbn Cutters High Chromium Cast Iron Slurry Pump Halnn Solid CBN Tools

5.FAQ

1. Are you a trading company or manufacturer ?

A: We are a manufacturer and wholesaler for diamond & CBN (cubic boron nitride) abrasives and tools.

2. How long is your delivery time?

A: Generally it is 3 -7 days.

2. Do you provide samples ? Is it free or extra ?

A: Normally we do not offer free samples, we could offer the sample for testing, but shipping fee is to be paid by customer as a company policy!
