Cast Iron Impurity Pump Solid Cbn Milling Inserts Finish Machining Semi Finish Turning

Zhengzhou Halnn Superhard Materials Co., Ltd
Contact Now

Cast Iron Impurity Pump Solid Cbn Milling Inserts Finish Machining Semi Finish Turning

Brand Name : Halnn

Model Number : SNMN1207

Certification : ISO9001

Place of Origin : China

MOQ : 10 pcs

Price : Negotiable ( About 10-30 Usd/ Piece)

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 100000 pcs per month

Delivery Time : 3~15 working days

Packaging Details : 10 pcs in one plastic box inside, carbon box outside

Machining Process : Heavy turning

Dimension : Customter-made

Application : Pump Case, Pump body

Origin Country : Henan,China

Mnchining Material : High Chromium Cast iron

Brade : Turning Tools

Insert Type : SNMN1207

Body : Cubic boron nitride

Coating : Uncoated

Grade : ISO Grades

Contact Now

Finish Machining and Semi Finish Turning High Chromium Cast iron Impurity pump CBN Insertrs


1. Halnn Tools Finish Machining and Semi Finish Turning High Chromium Cast iron Impurity pump CBN Insertrs

When machining industry pumps with coated carbide insert and ceramic cutters, it will has some problems, such as chipping, change insert frequently,ect. All of them will affect the working efficiency, and increase the tool costs, lower the profit.

Specific for this situation, Halnn researched BN-K1 solid cbn inserts for machining industry pump, which can help slove all the problems, and help the manufacturer improve their profit.


2. CBN Turning Inserts Characteristics

Insert Grade Machining Type Typical Application Suited Materials
BN-K1 Roughing Alloy Cast Iron, Slurry Pump, Wear resistant castings Chilled Cast Iron, Hi-Ni-Cr Cast Iron and High harness alloy cast iron
BN-S20 Roughing, Semi-Finishing HSS Rolls, Ball Screw, Wind Power Bearings Hardened Steel, Heat and abrasive resistant steel, High manganese steel


3.Detailed Data of CBN Turning Inserts

Cast Iron Impurity Pump Solid Cbn Milling Inserts Finish Machining Semi Finish Turning
Type Dimension Standard Chamfer Grades Corresponding tool holder
L(mm) φI.C(mm) S(mm) r(mm) BN-K1 BN-S20
SNMN120404 12.7 12.7 4.76 0.4

S01020

S01025

S02020

S02030

S05020

S10020

CSDNN

CSSNR/L

CSKNR/L

CSRNR/L

CSXNR/L

SNMN120408 12.7 12.7 4.76 0.8
SNMN120412 12.7 12.7 4.76 1.2
SNMN120712 12.7 12.7 7.94 1.2
SNMN120716 12.7 12.7 7.94 1.6
SNMN150716 15.875 15.875 7.94 1.6
SNMN201020 20 20 10 2.0

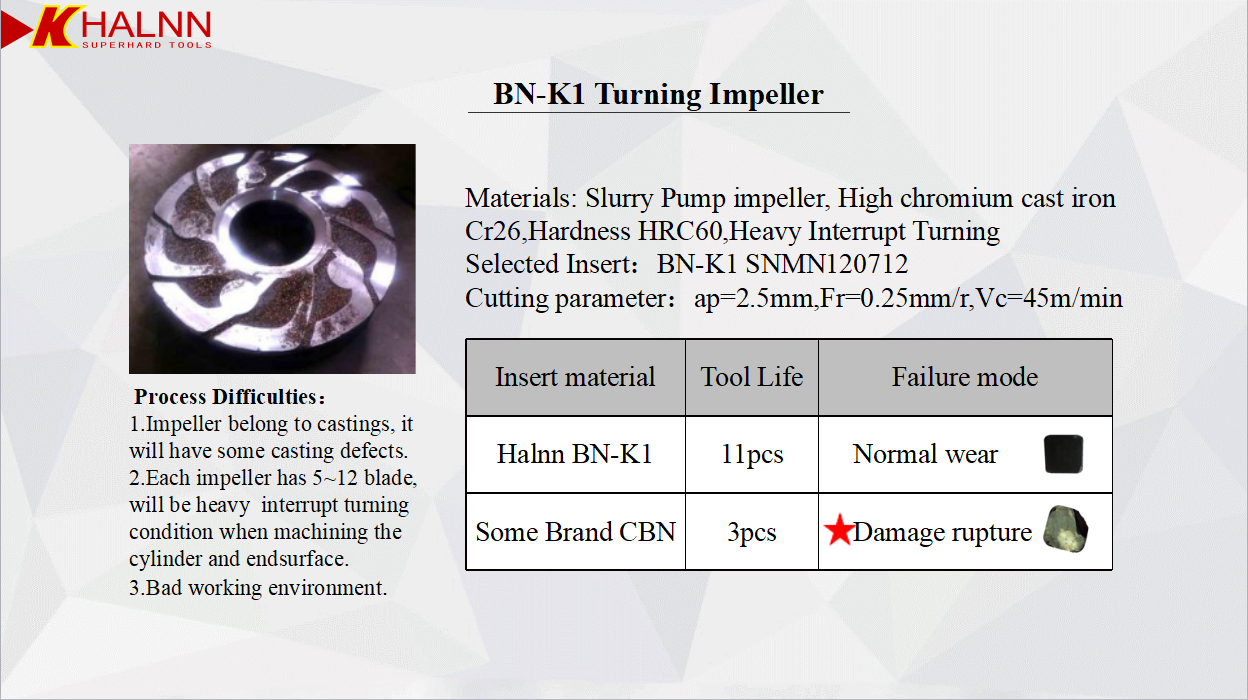

4. Application of High speed Machining High Chromium Cast iron Slurry pump CBN Turning Inserts

Cast Iron Impurity Pump Solid Cbn Milling Inserts Finish Machining Semi Finish Turning


5.FAQ

Q. How can we be your agent in our country?

A. Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution for you.

Q. Do you offer free samples?

A. Normally we do not offer free samples, but we guaranty our product’s quality.

Q. Is there cheap shipping cost to import to our country?

A. For small order, Express will be the best, And for bulk order, sea ship way is best but take longer time. For urgent orders, we suggest via air to airport or by Express send to your door.

Q. When you can reply to me when I send you an Inquiry?

A. We promise to reply within 24 hours(not including holidays) on receipt of your inquiry.
