ISO Grades Solid CBN Inserts , Solid Cbn Turning Inserts High Speed Machining

Name: ISO Grades Solid CBN Inserts Solid Cbn Turning Inserts High Speed Machining
Brand: Halnn
Price: 1 USD

ISO Grades Solid CBN Inserts , Solid Cbn Turning Inserts High Speed Machining Manufactures

Brand Name : Halnn

Model Number : SNMN1204

Certification : ISO9001

Place of Origin : China

MOQ : 10 pcs

Price : Negotiable ( About 10-30 Usd/ Piece)

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 100000 pcs per month

Delivery Time : 3~15 working days

Packaging Details : 10 pcs in one plastic box inside, carbon box outside

Machining Process : Heavy turning

Dimension : Customter-made

Application : Pump Case, Pump body

Origin Country : Henan,China

Mnchining Material : High Chromium Cast iron

Brade : Turning Tools

Insert Garde : SNMN1204

Body : Cubic boron nitride

Coating : Uncoated

Grade : ISO Grades

Contact Now

High speed Machining High Chromium Cast iron Slurry pump CBN Turning Inserts

1. Halnn Tools High speed Machining High Chromium Cast iron Slurry pump CBN Turning Inserts

BN-K1 solid cbn insert is researched specific for machining high hardness cast iron pump parts, it has high hardness and high strength when machining industry pump. And high speed cutting can realize high efficiency, dry cutting can realize reduce pollution. Now Bn-K1 solid cbn inserts already is widely used in pump industry all over the world.

2. CBN Turning Inserts Characteristics

Insert Grade	Machining Type	Typical Application	Suited Materials
BN-K1	Roughing	Alloy Cast Iron, Slurry Pump, Wear resistant castings	Chilled Cast Iron, Hi-Ni-Cr Cast Iron and High harness alloy cast iron
BN-S20	Roughing, Semi-Finishing	HSS Rolls, Ball Screw, Wind Power Bearings	Hardened Steel, Heat and abrasive resistant steel, High manganese steel

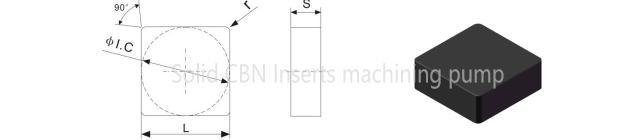

3.Detailed Data of CBN Turning Inserts


Type	Dimension				Standard Chamfer	Grades		Corresponding tool holder
Type	L(mm)	φI.C(mm)	S(mm)	r(mm)	Standard Chamfer	BN-K1	BN-S20	Corresponding tool holder
SNMN090304	9.525	9.525	3.18	0.4	S01020 S01025 S02020 S02030 S05020 S10020		●	CSDNN CSSNR/L CSKNR/L CSRNR/L CSXNR/L
SNMN090308	9.525	9.525	3.18	0.8			●
SNMN090312	9.525	9.525	3.18	1.2			●
SNMN090404	9.525	9.525	4.76	0.4			●
SNMN090408	9.525	9.525	4.76	0.8			●
SNMN090412	9.525	9.525	4.76	1.2			●
SNMN120404	12.7	12.7	4.76	0.4		●	●
SNMN120408	12.7	12.7	4.76	0.8		●	●
SNMN120412	12.7	12.7	4.76	1.2		●	●
SNMN120712	12.7	12.7	7.94	1.2		●	●
SNMN120716	12.7	12.7	7.94	1.6		●	●
SNMN150716	15.875	15.875	7.94	1.6		●	●
SNMN201020	20	20	10	2.0		●

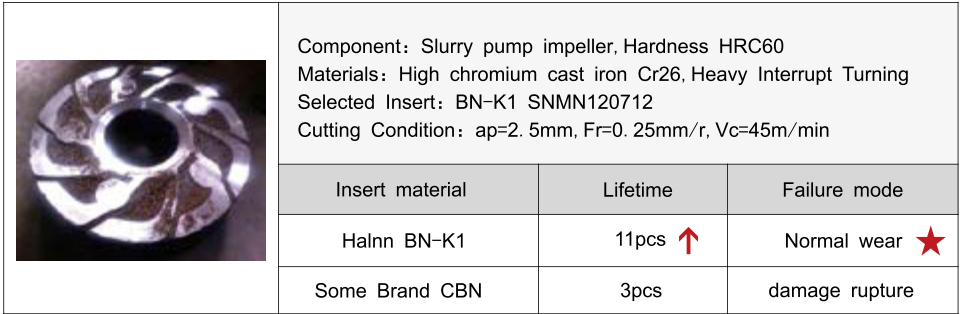

4. Application of High speed Machining High Chromium Cast iron Slurry pump CBN Turning Inserts

ISO Grades Solid CBN Inserts , Solid Cbn Turning Inserts High Speed Machining

5.FAQ

Q. How can we be your agent in our country?

A. Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution for you.

Q. Do you offer free samples?

A. Normally we do not offer free samples, but we guaranty our product’s quality.

Q. Is there cheap shipping cost to import to our country?

A. For small order, Express will be the best, And for bulk order, sea ship way is best but take longer time. For urgent orders, we suggest via air to airport or by Express send to your door.

Q. When you can reply to me when I send you an Inquiry?

A. We promise to reply within 24 hours(not including holidays) on receipt of your inquiry.
