When machining large scale bearings and high precision bearings, hard turning (turning instead of grinding) is a trend, the process efficiency is high and the cost is low. Traditional cutting tools carbide insert and ceramic cutters can’t satisfy their requirements.
With the widely used of the superhard cutting tools, turning instead of grinding already become a reality. As the leader of supehard cutting tools in China, Halnn Tools has special cutting tools for hard turning bearings, not only realize stable cutting performance, ensure the roughness, but also help the bearings industry reduce the total costs.
5.Application Case of CBN Cutting Tool Machining Bearing
BN-S200 Grade CNGN CBN Cutting Tool Hard Machining Bearing steel Wind turbine bearing

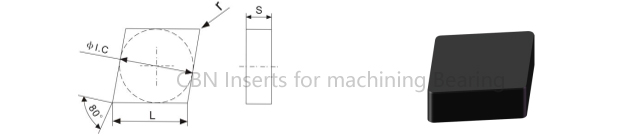

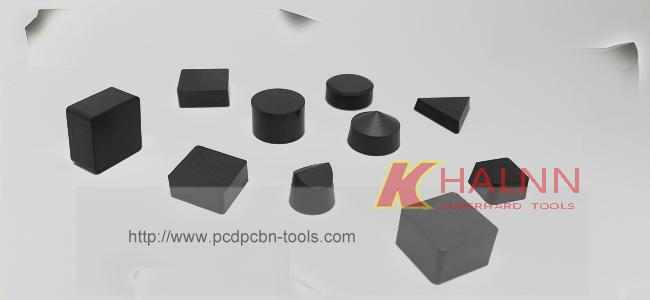

This process required high on the impact resistance of the cutting tools, Halnn recommend solid cbn inserts, common insert models: CNMN
Compared with traditional cutting tools, the processing efficiency is improved, and the roughness can arrive Ra0.8.
Application Case:
Machining Site: Raceway and End Surface
Materials: 42CrMo4
Hardness: HRC47~55
Insert Model: BN-S200 CNMN
Cutting Data: Vc = 110m/min, Fr=0.45mm/r, ap=0.5mm
Processing Type: Dry Cutting
Compared with the ceramic cutters:
| Insert Materials | Cutting Speed (m/min) | Tool Life | Roughness |
| Halnn BN-S200 | 110 | 8 | Ra0.8 |
| Ceramic Cutters | 90 | 1 | Ra1.6 |
6.FAQ
Q. How can we be your agent in our country?
A. Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution for you.
Q. Do you offer free samples?
A. Normally we do not offer free samples, but we guaranty our product’s quality.
Q. Is there cheap shipping cost to import to our country?
A. For small order, Express will be the best, And for bulk order, sea ship way is best but take longer time. For urgent orders, we suggest via air to airport or by Express send to your door.
Q. When you can reply to me when I send you an Inquiry?
A. We promise to reply within 24 hours(not including holidays) on receipt of your inquiry.
