Indexable PCD Inserts Pcd Tipped Blade For Machining Ferrous Metal

Name: Indexable PCD Inserts Pcd Tipped Blade For Machining Ferrous Metal
Brand: Halnn
Price: 1 USD

Indexable PCD Inserts Pcd Tipped Blade For Machining Ferrous Metal Manufactures

Brand Name : Halnn

Model Number : CPGT/DCGT/TNGA/TCGW

Certification : ISO9001

Place of Origin : China

MOQ : 10 pcs

Price : Negotiable

Payment Terms : T/T, Western Union, Western Union, Paypal

Supply Ability : 100000 pcs per month

Delivery Time : 5~15 working days

Packaging Details : 10 pcs each plastic box inside, carton box out side

Materials : Polycrystalline Diamond

MOQ : 10 pcs

Halnn Grade : CDW010/CDW025/CDW302

Relief Angle : 0~10°

Machining Materials : Aluminum alloy and Composites

Origin Country : China

Contact Now

ISO PCD Inserts Indexable PCD Tipped Turning Tools for machining Ferrous Metal

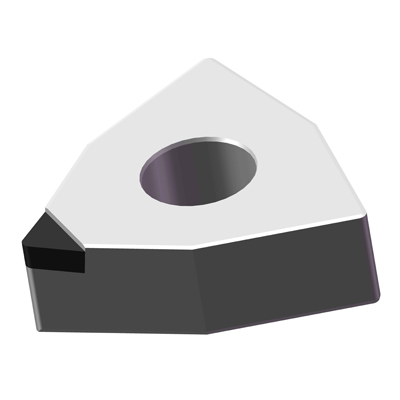

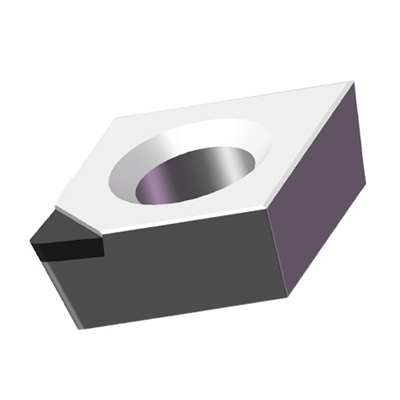

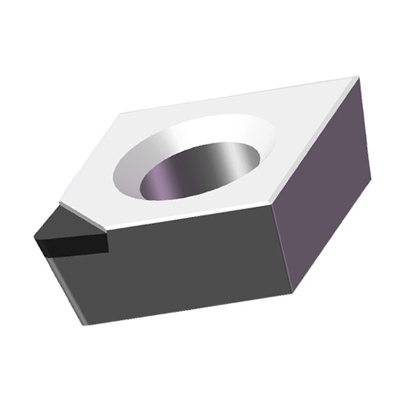

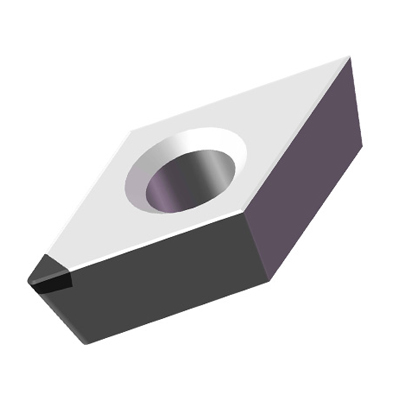

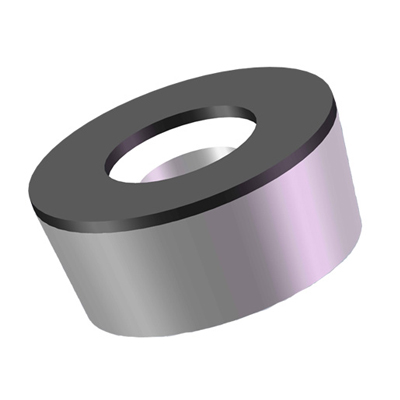

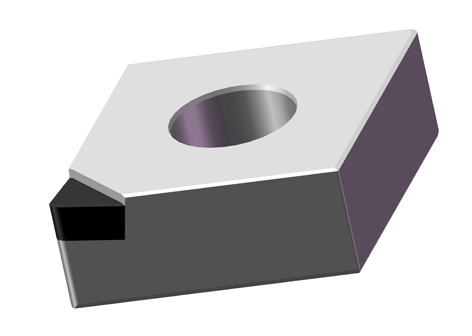

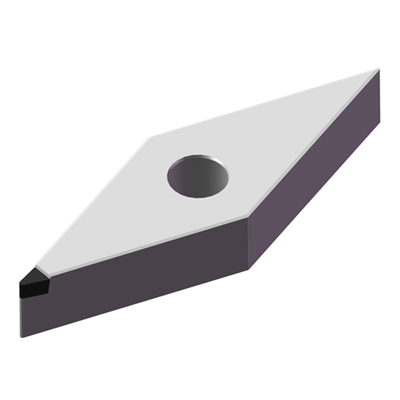

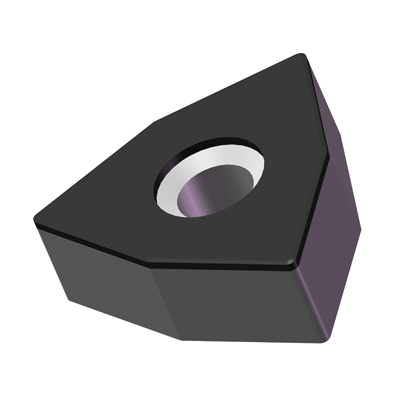

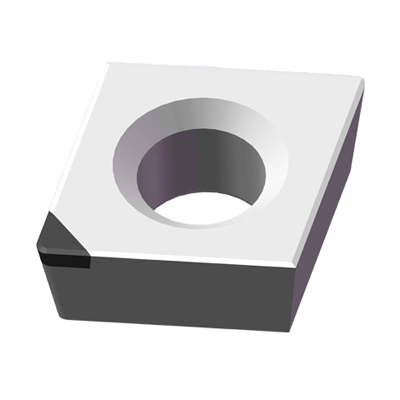

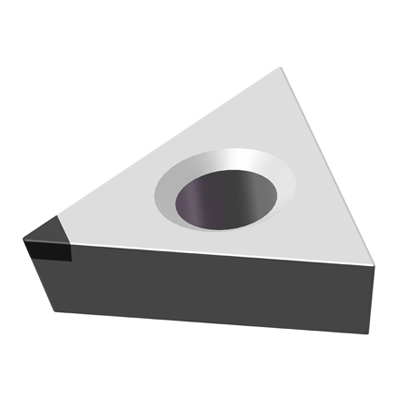

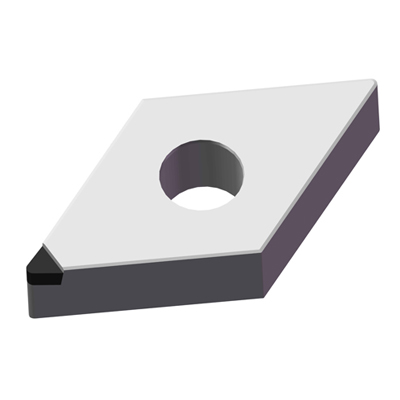

1. Halnn PCD Inserts ISO Models

ISO Models PCD Inserts

CNGA	CCMW/CCGW	CCGT/CCMT	CPGT

DNGA	DCGW	SPGW	VNGA

TCGW/TCPW	RCGW/RPGW	WNGA	WCGW

2. PCD Grade and Application

Grade	Granularity (μm)	Characteristics	Application	Microstructure
CDW850	Submicron	Ultra-fine grain structure, strong edge sharpness and edge durability	High precision machining, mirror surface machining, suite for aluminum alloy that required high on the chipping performance, mainly used for machining Ti alloy and other composites
CDW002	2μm	High cobalt content, Good electrical machine performance, excellent toughness, Good roughness machining, more convinent for complec tool processing	Mainly used for engrave milling cutter and thread cutting tool, and also cutting tools for wear-resistant parts, used in woodworking saws, particleboard and the tools for machining silicon aluminum alloy
CDW005	5μm	Excellent electric spark and machinability, good toughness, wear resistance and edge quality	It suits for good surface quality processing, mainly used for machining PMMA, Silicion alloy and metal cell phone shell outlin and used in the wood cutting tools, saws industry
CDW010	10μm	Universal PCD Grade, good toughness and high abrasive resisitance	Suit for single tool for rough machining, especially for wood molding, medium and low silicon aluminum alloy parts (such as piston).
CDW025	25μm	High wear resistance and edge quality	Suit for high Silicion Aluminum alloy, MMC, Tungsten carbide and ceramic, graphite,wear resistant parts, mainly used in wood Wood finishing insert and saws
CDW302	2~30μm	Mixed 2μm and 25μm,good wear resistance and edge quality and edges strength	It mainly used for machining MMC, high Silicion Aluminum calloy, high strength cast iron and other application.

3. Halnn Recommend Cutting Condition

Component Materials	Recommend PCD Grade				Vc(m/min)	Fr(mm/r)	ap(mm)
Aluminum alloy 4-8%Si	CDW010	CDW302	CDW005	CDW850	100-5000	0.03-0.5	0.1-3.0
Aluminum alloy 9-13%Si	CDW010	CDW302		CDW850	100-3000	0.03-0.5	0.1-3.0
Aluminum alloy ＞13%Si	CDW010	CDW302	CDW025	CDW850	100-2500	0.03-0.4	0.1-2.5
Copper alloy	CDW010	CDW302	CDW025	CDW850	100-1000	0.03-0.3	0.1-3.0
Titanium alloy	CDW850	CDW005			100-200	0.05-0.2	0.1-2.0
Tungsten Carbide Co < 16%	CDW302	CDW025	CDW010		15-40	0.1-0.25	0.1-1.0
Tungsten Carbide Co > 16%	CDW302	CDW025	CDW010		10-30	0.03-0.1	0.05-0.3
Wood	CDW010	CDW302	CDW005	CDW002	100-4000	0.1-0.4	0.1-3.0
Graphite	CDW302	CDW025	CDW010		100-600	0.1-0.5	0.05-2.0
Metal matrix Composites	CDW302	CDW025	CDW010		300-600	0.1-0.4	0.2-1.5
Composites(Carbon Fiber)	CDW302	CDW025	CDW010		200-2000	0.05-0.3	0.1-3.0

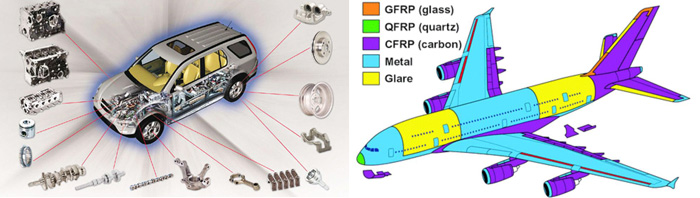

4. Typical Application

(1) Automotive Industry, such as al alloy engine, aluminum alloy wheel hub and other aluminum alloy products

(2) Aerospace industry, such as Composites,GFRP,QFRP,CFRP,ect.

(3) Non-Metal Materials, such as graphite electrode
