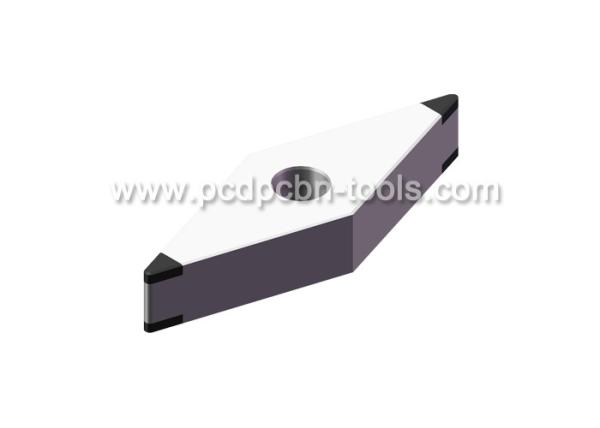

BN-H10 Cnc Turning Parts PCBN Cutting Inserts Machining Metallurgical Bearings GCr15

Product Categories

Zhengzhou Halnn Superhard Materials Co., Ltd

Contact Now

Name: BNH10 Cnc Turning Parts PCBN Cutting Inserts Machining Metallurgical Bearings GCr15
Brand: Halnn
Price: 1 USD

Brand Name : Halnn

Model Number : VNGA/DNGA/VCGW

Certification : ISO9001

Place of Origin : China

MOQ : 10 pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 100000 pcs per month

Delivery Time : 5~15 working days

Packaging Details : 10 pcs in one plastic box, outside carton box

Application : Hardened Steel

Halnn Grade : BN-H10

Materials : Cubic Boron Nitride

MOQ : 10 PCS

Coating : With/Without Coating

Brand : Halnn

Contact Now

CNC Turning Parts BN-H10 Hard Turning Inserts For Machining Metallurgical Bearings GCr15

1. Halnn PCBN Inserts BN-H10 Advantages

Insert Materials	Coating	Suited Materials	Machining Type	Application
BN-H10 BN-H10 C25	With /Without Coating	Hardened Steel, High strength cast iron	Semi-Interrupt	Gears,Gear Shaft, Bearings,wind power bearings

2. BN-H10 PCBN Inserts Cutting Condition

Insert Materials	CBN Content	Binder	Granularity (μm)	Hardness (HV)	Machining Type
BN-H10	50%	Al,TiN	≤1	2700~2800	Continuous Turning~ Semi-Interrupt Turning
BN-H10 C25

3. Typical Application with Halnn PCBN Inserts BN-H10

BN-H10 DNGA150408 Hard Turning Inserts for Machining Metallurgical Bearings GCr15
Component	Metallurgical bearings	Materials	GCr15, HRC58~62
Insert Grade	BN-H10 DNGA150408	Process	Dry Cutting
Cutting Condition	ap=2.5mm,Fr=0.12mm/r,Vc=140m/min
Insert Material	Cutting Speed	Tool Life	Surface Roughness
Halnn BN-H10	140m/min	12 piece	Ra 0.8
Other PCBN	140m/min	10 piece	Ra 0.8

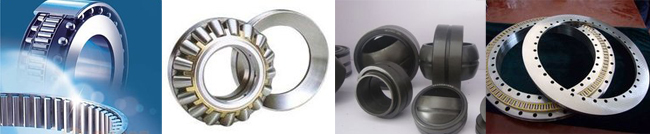

4. Different Types Bearings that can be machined with Halnn PCBN Inserts

BN-H10 Cnc Turning Parts PCBN Cutting Inserts Machining Metallurgical Bearings GCr15
