BN-H20 PCBN Turning Cutting Tools Alloy Tool Steel Cr12MoV Rolling Round Thread

Name: BNH20 PCBN Turning Cutting Tools Alloy Tool Steel Cr12MoV Rolling Round Thread
Brand: Halnn
Price: 1 USD

BN-H20 PCBN Turning Cutting Tools Alloy Tool Steel Cr12MoV Rolling Round Thread Manufactures

Brand Name : Halnn

Model Number : TNGA1604

Certification : ISO9001

Place of Origin : China

MOQ : 10 pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram,paypal

Supply Ability : 100000 pcs per month

Delivery Time : 5~15 working days

Packaging Details : 10 pcs in one plastic box, outside carton box

Materials : PCBN

Application : Alloy tool steel

Halnn Grade : BN-H20

MOQ : 10 pcs

Orgin Country : China

Machining Type : Continuous Turning

Contact Now

BN-H20 PCBN Inserts Hard Turning Alloy Tool Steel Cr12MoV Rolling Round Thread

1. BN-H20 PCBN Inserts Features

Insert Grade	Suited Materials	Machining Type	Typical Application
BN-H20	Hardened steel, other materials of difficult to machine	Semi-Finishing, Finishing	Hardened Steel Gears, Mold,ect

BN-H20 PCBN Insert belong to brazed pcbn inserts, it has multi cutting edges, which will be more economic than other pcbn inserts when semi-finish machining hardened steel.

2.Typical Application ~ BN-H20 PCBN Inserts Machining Medical Equipment

BN-H20 PCBN Inserts Machining Alloy Tool Steel rolling round thread
Machining Part:Rolling Round Thread		Machining Materials:Cr12MoV alloy tool steel
Workpiece Hardness:HRC59		Inserts Grade:BN-H20 TNGA160404
Cutting Type:Dry Cutting		Cutting Parameters: ap=0.2mm,Fr=0.08mm/r,Vc=70m/min
Testing Performance
Inserts Materials	Linear Speed(m/min)	Lifetime/edge	Failure mode
Halnn BN-H20	70	30	Normal wear
Carbide inserts	26.2	1	Chipping

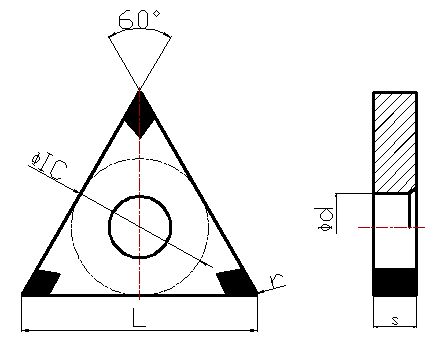

3. Triangle TNGA PCBN Inserts Specifications


Type	Dimension					Standard Chamfer	BN-H20
Type	L(mm)	φI.C(mm)	S(mm)	φd(mm)	r(mm)	Standard Chamfer	BN-H20
TNGA160404-6S	16	9.525	4.76	3.81	0.4	S01015 S01020 S01025 S02020	●
TNGA160408-6S	16	9.525	4.76	3.81	0.8		●
TNGA160412-6S	16	9.525	4.76	3.81	1.2		●

4. Common Compound PCBN Inserts Models


SNGA-8S	TNGA-6S	VNGA-4S	WNGA-6S
